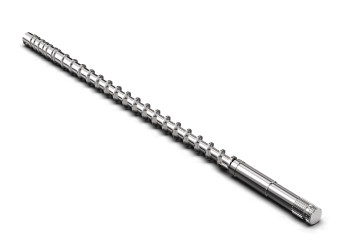

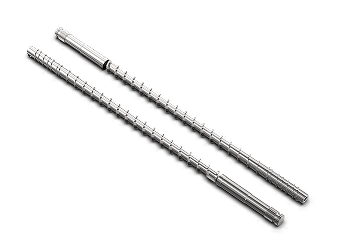

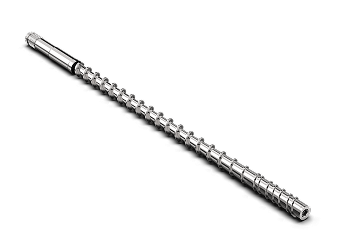

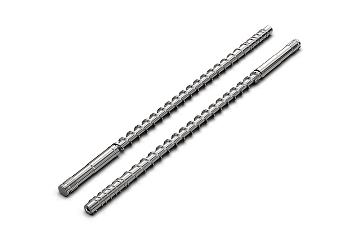

Nitrided Screw
Products / Screw / Nitrid Screw
About Nitrided Screw
Nitriding is a specialized heat treatment technique in which nitrogen is diffused into the surface of metal to form a hardened outer layer. This process significantly improves the durability and lifespan of the component.
Nitrided screws are widely used in plastic processing applications such as injection molding, extrusion molding, and blow molding. The nitriding treatment enhances the screw’s resistance to wear, corrosion, and abrasion, ensuring reliable performance even under demanding operating conditions.
These screws are manufactured using high-quality nitriding steel, typically EN41B, and undergo an extended nitriding process of approximately 72 hours. This treatment produces a hardened surface layer with a hardness range of 65–68 HRC, providing excellent resistance against surface wear.
At Bhagwati Enterprise, nitrided screws are available in a wide range of dimensions to meet various industrial requirements. The screw diameter ranges from 14 mm to 200 mm, with lengths available up to 6 meters, making them suitable for different types of machinery and processing needs.
- Product name – Nitrided Screw
- Material – EN41B
- Available size – Dia 14 – 200 mm, length upto 6m long
- Surface hardness – 65-68 HRC
- Process method – Gas Nitriding
Common plastic & engineer plastics with glass filled content below 10%.
Looking for Nitrided Screws, Bimetallic Screws, Barrels, or Custom Screw & Barrel solutions? Bhagwati Enterprise manufactures high-quality components for plastic processing industries.
Production Process
confirm
Tempering
customs
1
Order & drawing confirm
2
Down Payment
3
Production
4
Hardening & Tempering
5
Inspection
6
Documents for clear customs
7
Packing & delivery
8
Balance
9
Inspection
10
Nitriding
